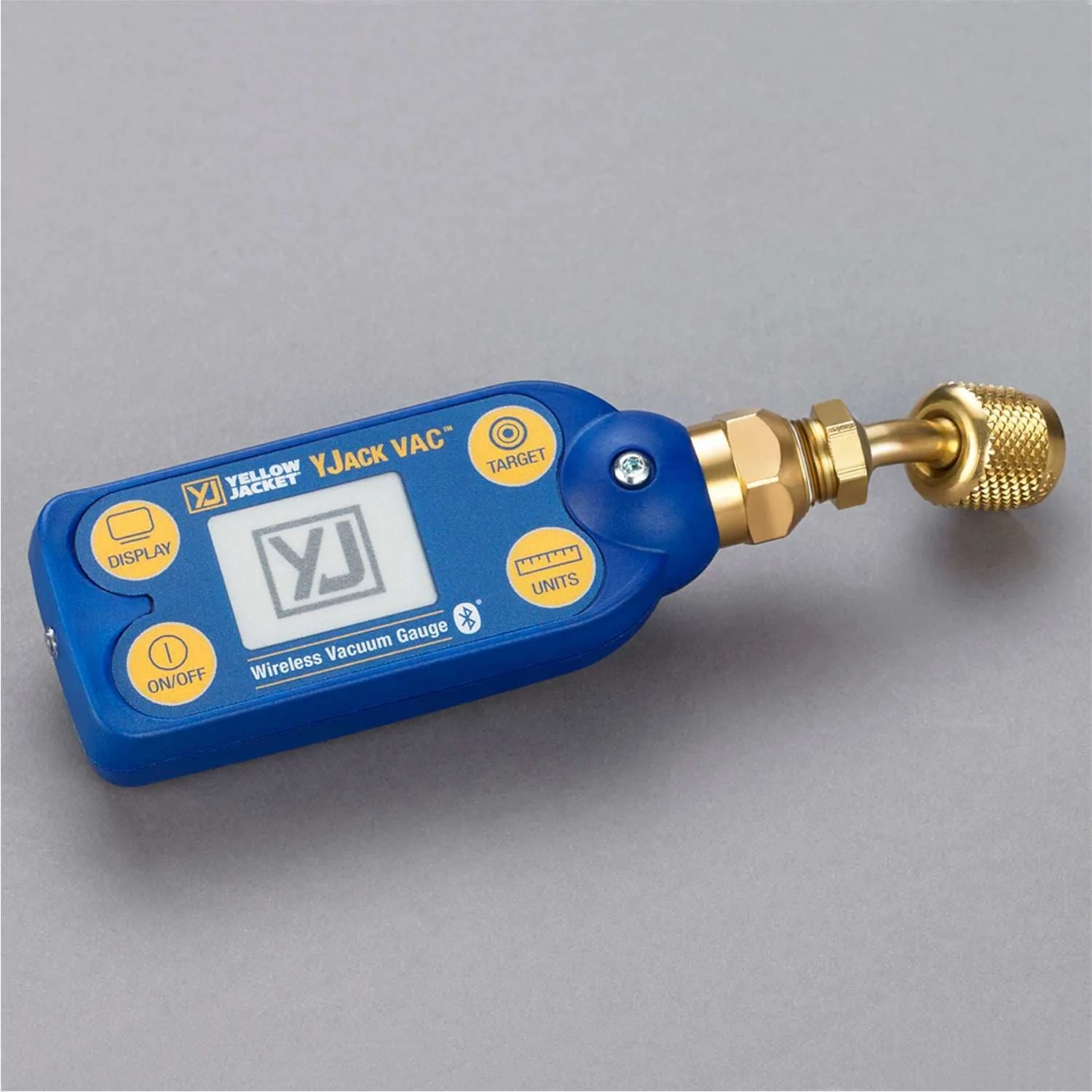

Yellow Jacket YJACK VAC Wireless Vacuum Gauge
Yellow Jacket YJACK VAC Wireless Vacuum Gauge - 67066
The YJACK VAC Wireless Vacuum Gauge 67066 by YELLOW JACKET® provides all the features needed for effective system evacuation. It offers full range vacuum measurement from atmospheric pressure down to 1 micron and the robust sensor ensures accurate readings during every job. Use the integrated display to view system vacuum readings and configure target vacuum levels or track the evacuation remotely with the YJACK VIEW® app or P51-870 TITAN® Digital Manifold. Perform hold tests and log system data for service records and reporting.
- Wireless system vacuum measurement from atmospheric pressure to 1 micron
- Robust sensor resists pressure shock and oil contamination
- 45° x 1/4 quick-coupler fitting for versatile system attachment
- Electronic paper display for clear visibility even in direct sunlight
- Bluetooth® 4.2 compliant low energy radio
- 400 ft line of sight signal range*
- Compatible with YJACK VIEW® App and P51-870 TITAN® devices (firmware version v3.0 or later)
- Proof Pressure: 450 psi (31 bar)
- Vacuum Reading Range: 1 to 760,000 microns with the YJACK VIEW® App (1 to 99,999 microns on integrated display)
- Accuracy: +/- 20% of reading (from 10 to 25,000 microns)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 122°F (-20°C to 50°C)
- Up to 240-hour battery life with power saving mode (2x AAA included)
- 2-year warranty
- Made in the USA
*Radio interference and nearby obstructions may reduce signal strength
**Results may vary with ambient conditions
Click here to view the product spec sheet
Yellow Jacket YJACK VAC Wireless Vacuum Gauge
Yellow Jacket YJACK VAC Wireless Vacuum Gauge - 67066
The YJACK VAC Wireless Vacuum Gauge 67066 by YELLOW JACKET® provides all the features needed for effective system evacuation. It offers full range vacuum measurement from atmospheric pressure down to 1 micron and the robust sensor ensures accurate readings during every job. Use the integrated display to view system vacuum readings and configure target vacuum levels or track the evacuation remotely with the YJACK VIEW® app or P51-870 TITAN® Digital Manifold. Perform hold tests and log system data for service records and reporting.
- Wireless system vacuum measurement from atmospheric pressure to 1 micron
- Robust sensor resists pressure shock and oil contamination
- 45° x 1/4 quick-coupler fitting for versatile system attachment
- Electronic paper display for clear visibility even in direct sunlight
- Bluetooth® 4.2 compliant low energy radio
- 400 ft line of sight signal range*
- Compatible with YJACK VIEW® App and P51-870 TITAN® devices (firmware version v3.0 or later)
- Proof Pressure: 450 psi (31 bar)
- Vacuum Reading Range: 1 to 760,000 microns with the YJACK VIEW® App (1 to 99,999 microns on integrated display)
- Accuracy: +/- 20% of reading (from 10 to 25,000 microns)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 122°F (-20°C to 50°C)
- Up to 240-hour battery life with power saving mode (2x AAA included)
- 2-year warranty
- Made in the USA
*Radio interference and nearby obstructions may reduce signal strength
**Results may vary with ambient conditions
Click here to view the product spec sheet
