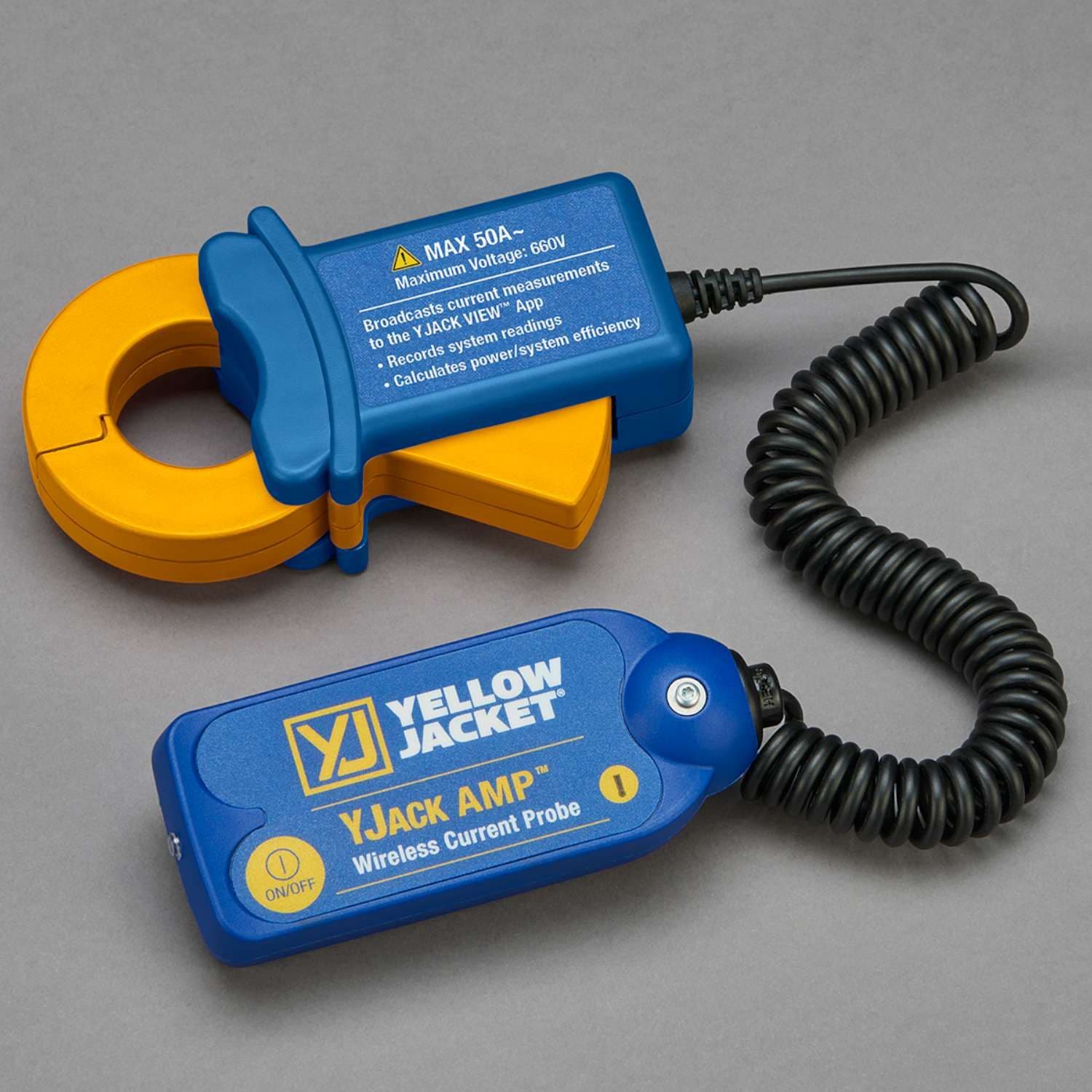

Yellow Jacket YJACK AMP Wireless Current Probe
Yellow Jacket YJACK AMP Wireless Current Probe - 67067
Take electrical current measurements and analyze critical system power information with the YJACK AMP Wireless Current Probe 67067 by YELLOW JACKET®. The durable and compact clamp provides accurate readings even in hard-to-reach areas. Inrush current of system compressor can be measured to analyze hard starts. The system electrical input can be compared to the heating/cooling output to calculate the Energy Efficiency Ratio (EER).
- Wireless current measurement up of 50 Amps AC
- 1.2 jaw opening
- Current Sensor Accuracy: +/- 1% of reading or +/- 0.15 Amps (whichever is greater)
- Maximum Voltage: 660V
- Measure inrush current to analyze hard starts and troubleshoot blown fuses
- Flexible spiral cable and compact clamp body for easy access in difficult to reach areas
- Rotating mounting magnet for optimal Bluetooth® transmitter placement
- Bluetooth® 4.2 compliant low energy radio
- 400 ft. line of sight signal range*
- Compatible with YJACK VIEW® App
- Operating Temperature: 0°F to 130°F (-18°C to 55°C)
- Storage Temperature: -22°F to 130°F (-30°C to 55°C)
- 600 hour battery life (2x AAA included)
- 2-year warranty
- Made in the USA
Click here to view the product spec sheet
