Yellow Jacket TITAN CO² R744 Manifold and hoses

Yellow Jacket TITAN CO² R744 Manifold and hoses 45925

Manifold and hoses designed specifically for transcritical C02 (R-744) applications.

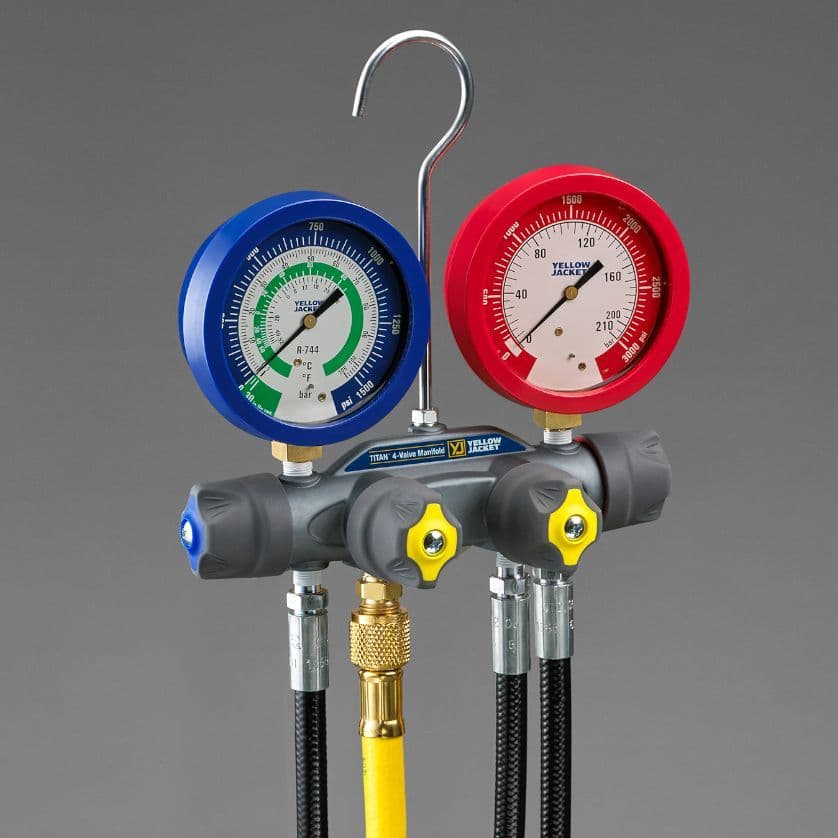

The YELLOW JACKET® TITAN® Test and Charging Manifold for transcritical CO2 systems is constructed with a forged aluminium alloy body making it lightweight for easy handling and durability. No sight glass for added safety.

Features:

• Large, easy-to-read 3-1/2 (90 mm) liquid-filled red and blue,
• 1% accuracy (Class 1) gauges; psi/bar
• Proven double o-ring piston for reliability and long service life
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats
• Fourth hose to enable connection to hi/lo sides, refrigerant tank, and vacuum pump for diagnostics, evacuation and charging without switching hoses
• 3/8 vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings on unit are 1/4)
• Durable carrying case

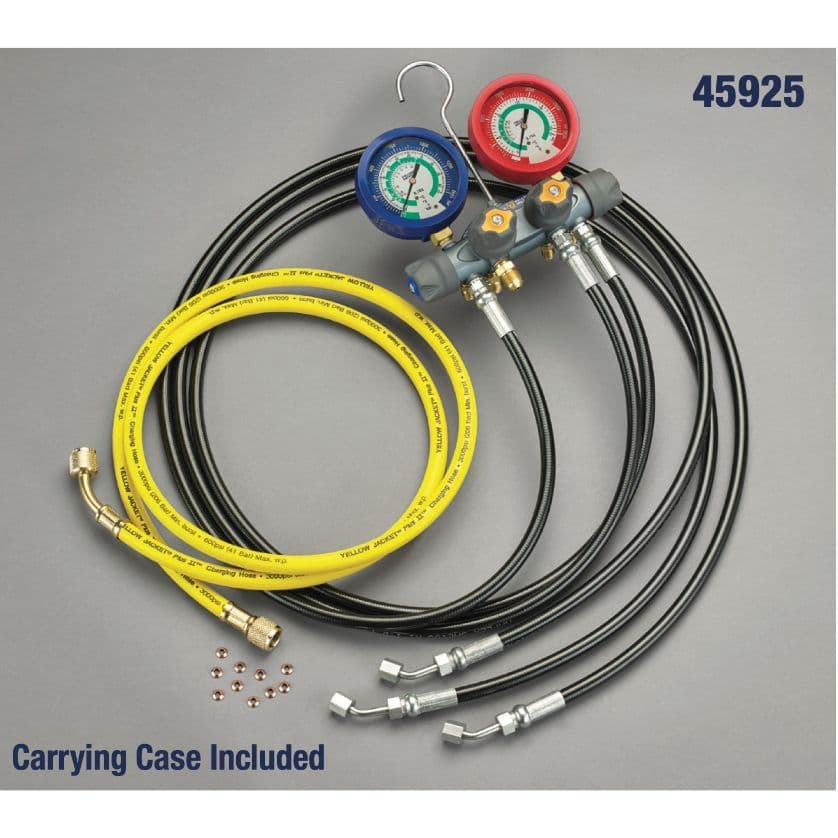

• Dedicated transcritical CO2 hose 72 (182 cm) in length
• One-year warranty
• Designed and assembled in the USA

TITAN® 4-Valve Manifold Forged Aluminium Bar
Precision stainless steel valve feed screws
Double o-ring for reliability and long service
No sight glass for added safety
100 mesh filter in-line on all flare fittings

High Pressure C02 (HPC) Black Hoses
72 (182 cm) 1/4 SAE
Operating pressure 1740 psi (120 bar)
High pressure copper gaskets

PLUS II 3/8 SAE (vacuum application only)
Operating pressure 594 psi (41 bar)
Neoprene built-in gaskets

Gauges
Class 1, 3-1/2 (90 mm), oil-filled, pulse-free, liquid-filled gauges
Low pressure 30 Hg/1500 psi (-1/+105 bar); -60° to 85°F (-52° to 30°C)
High pressure 0/3000 psi (0/210 bar)

All in a Durable Carrying Case

Click here to view the product spec sheet
