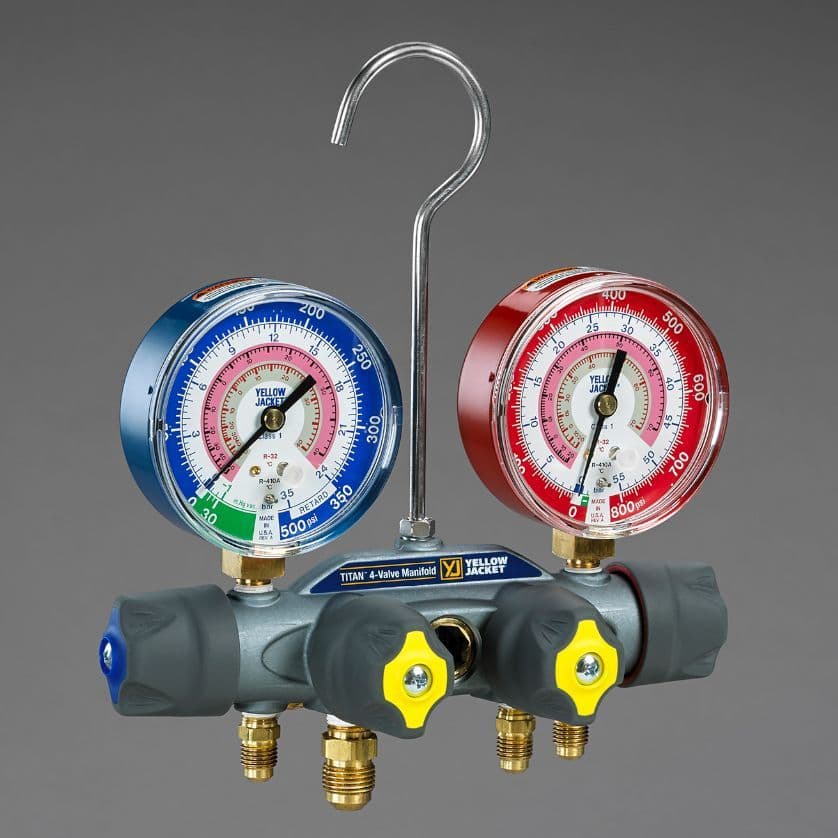

Yellow Jacket TITAN 4 Valve Manifold R448A/449A/452A

Yellow Jacket TITAN 4 Valve Refrigeration R448A/449A/452A Manifold - 49901

The TITAN Test and Charging Manifold was the first forged aluminium manifold in the air conditioning and refrigeration industry.

The special aluminium alloy construction of the manifold body makes it lightweight for handling ease with the durability and reliability required for repeated use.

• Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
• 3/8 Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4)
• Large, easy-to-read 3-1/8 (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
• Front access for easy field recalibration
• Double O ring piston for reliability and long service life
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
• Contoured easy-grip handles for positive control; color-coded for ready identification
• Sight glass to easily view refrigerant movement and condition during charging and recovery
• Optional protective gauge boots available
• Heavy duty hook wont pull out
• Manifold and hose holder fittings 1/4-3/8-1/4-1/4 unless otherwise identified
• Made in the USA
• Bar & PSI

Click here to view the product spec sheet
