Yellow Jacket 5/16" R410A R32 Heat Pump Kit

Yellow Jacket 5/16" R410A R32 Heat Pump Kit 61040
Ideal for air conditioning & refrigeration

Complete Kit for Fast, Safe Heat Pump Installations and Service.

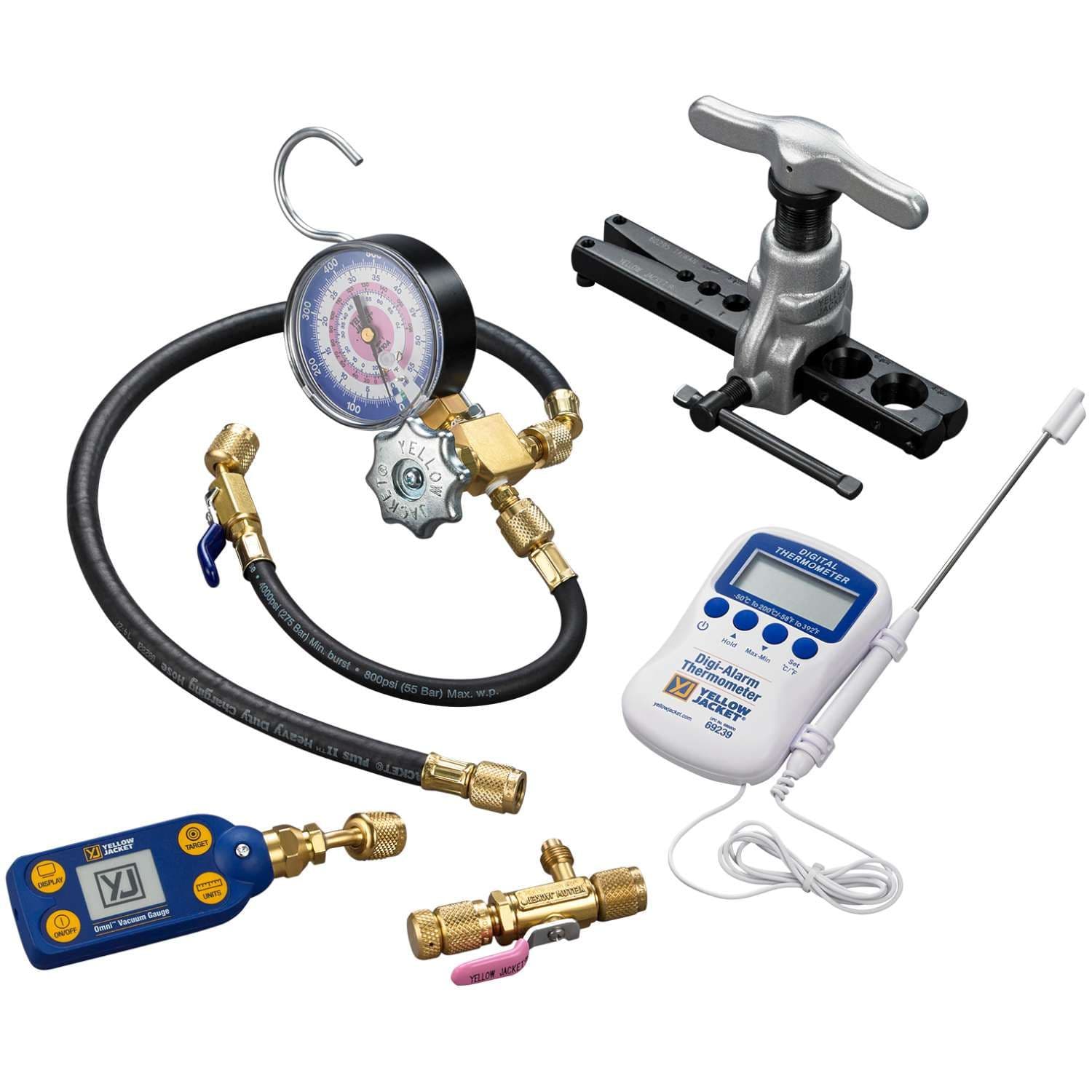

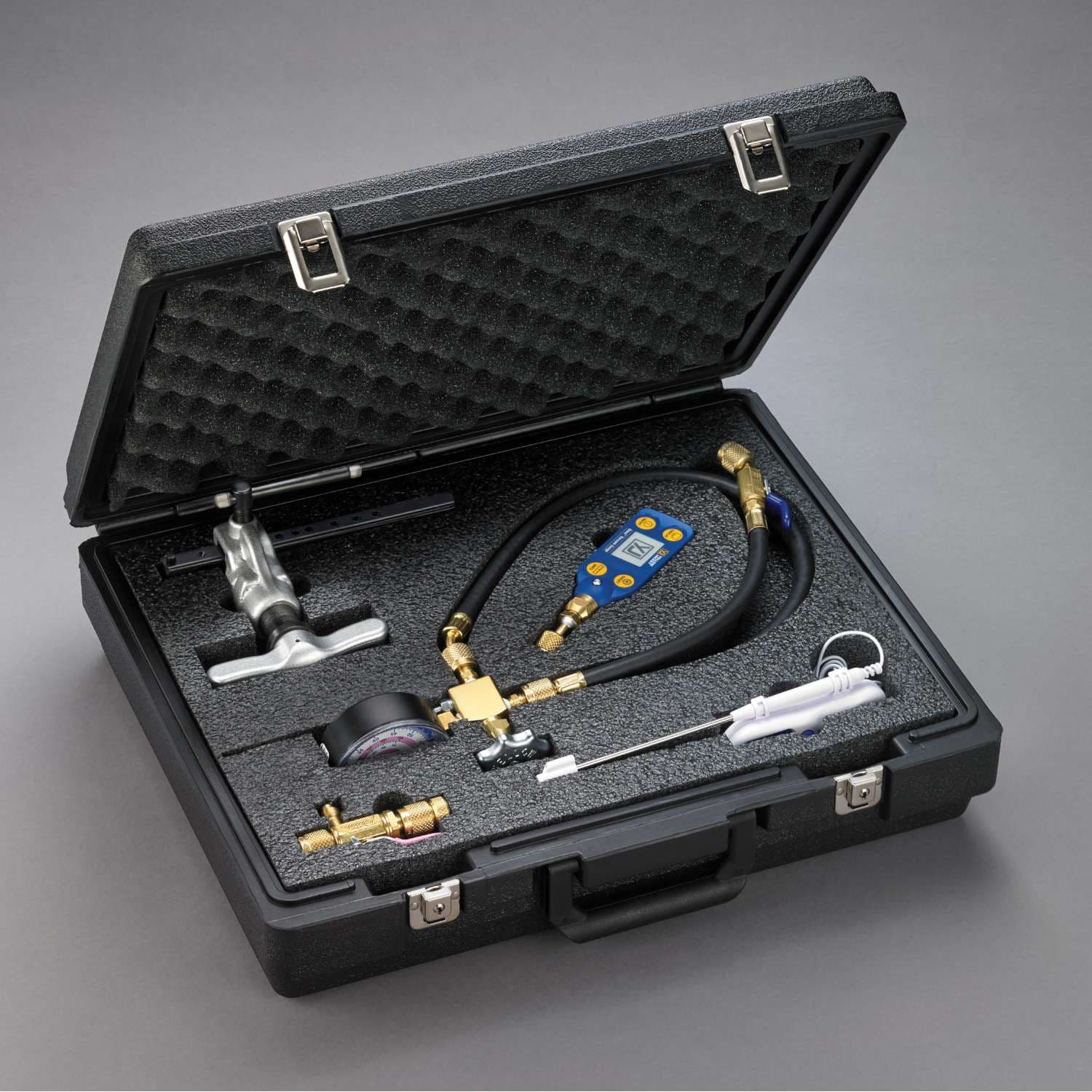

The YELLOW JACKET^® Heat Pump Kit is developed specifically for R410A/R32 Mini-Split Systems with a single 5/16 SAE access point. Use of this kit allows the service technician to quickly and safely install and service heat pumps with minimal refrigerant loss. Featuring a 3 1/8 (80 mm) heavy duty gauge and hose set designed for 800 psi, it can read pressure whether the heat pump is in heating, cooling or transition. The Heat Pump Kit includes a thermometer, core removal tool, OMNI digital vacuum gauge and eccentric cone flaring tool. The rugged carrying case keeps all tools organised and protected. Heat Pump Kit 61040 has a one-year warranty.

Heat Pump Single Valve Manifold (R-410A/R32 °F and °C)

• Forged brass body for durability
• Brass piston double o-rings for reduced wear and a highly durable nylon seat
• Large easy-to-read 3-1/8 (80 mm) gauge features black steel case with polycarbonate crystal
• Gauge is accurate within 1% (Class 1) full scale to provide the level of accuracy necessary for critical system charge
• Gauge maximum working pressure of 800 psi with R-410A and R-32 saturation temperatures

PLUS ll Heavy Duty Charging Hoses

• Heavy-duty construction
• Compact ball value (full flow) on 29491 1/4 x 5/16 SAE fittings
• 4000 psi (276 bar) minimum burst 800 psi (55 bar) maximum working pressure

Eccentric Cone Flare Tool

• Off-center harden steel cone with 45° flare
• Produces R-410A flares
• Built-in clutch release to prevent over torquing
• Suits 3/16 to 3/4 tubing
• Large feed screw handle for smooth turning with little effort
• Black oxide-finish steel flaring bars heat-treated for durability and secure grip on tubing

5/16 Core Removal Tool

• Remove and replace Schrader cores without losing refrigerant charge
• Unrestricted line for increased speed during evacuation and deeper vacuum
• 5/16 side port with Schrader core for attaching the OMNI Digital Vacuum Gauge

Digi-Alarm Thermometer

• Measures from -58° F to 392 F (-50 C to 200 C)
• Alarms at the high/low programmed temperatures
• F and C switchable
• Data hold function
• Key tone to confirm operation
• Maximum/minimum temperature memory
• Automatic self-test after battery installation
• Foldaway stand

OMNI Digital Vacuum Gauge with 5/16 Coupler

• Four units of vacuum: microns, millibar, Torr and Pascals
• Vacuum Reading Resolution:
• 1 micron (from 1,000 to 5 microns)
• 10 microns (from 10,000 to 1,000 microns)
• 100 microns (from 25,000 to 10,000 microns)
• Maximum positive pressure of 450 psi
• Electronic paper display for clear visibility in bright sunlight
• Audio and visual alarm when target vacuum level is reached
• Low battery indicator and automatic power off when gauge is inactive
• IP50 Rated
