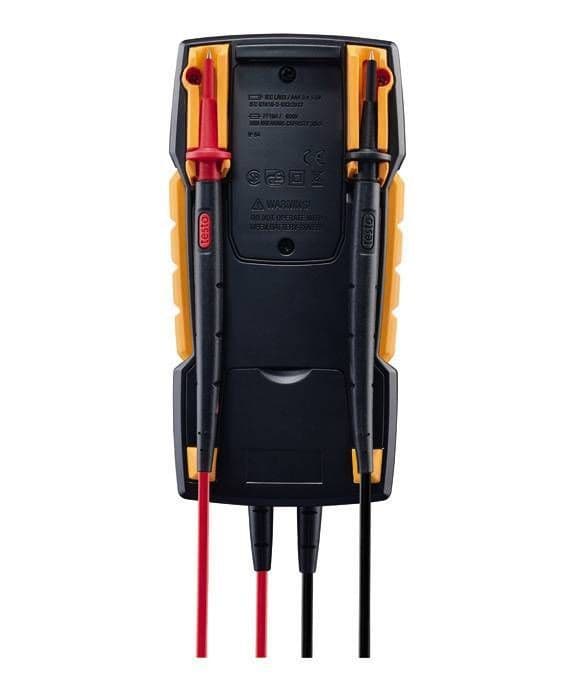

testo 760-1 - Electrical Multimeter

0590 7601

• Easy, reliable operation through automatic measurement parameter detection
• Prevents incorrect settings
• Suitable for almost all electrical measuring tasks
• Clear, illuminated display

No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments and you can't make any mistakes


DC voltage
Measuring Range	0.1 to 600 V
Resolution	0.1 mV
Accuracy	± (0.8 % of mv + 3 Digit)
AC voltage
Measuring Range	0.1 mV to 600 V
Resolution	0.1 mV
Accuracy	± (1.0 % of mv + 3 Digit)
DC current
Measuring Range	0.1 mA to 10 A
Resolution	0.1 mA
Accuracy	± (1.5 % of mv + 5 Digit)
AC current
Measuring Range	0.1 mA to 10 A
Resolution	0.1 mA
Accuracy	± (1.0 % of mv + 3 Digit)
Resistance
Measuring Range	0.1 Ohm to 40.00 MOhm
Resolution	0.1 Ohm
Accuracy	± (1.5 % of mv + 3 Digit)
Capacitance
Resolution	0.01 nF
Measuring Range	10 nF to 100.0 μF
Accuracy	± (1.5 % of mv + 5 Digit)
Frequency
Resolution	0.001 Hz
Measuring Range	0.001 Hz to 512.0 kHz
Accuracy	± (0.1 % + 1 Digit)
General technical data
Dimensions	167 x 85 x 45 mm
Operating temperature	-10 to +50 °C
Protection class	IP64
Storage temperature	-15 to +60 °C
Weight	340 g
Overvoltage Category	CAT III 600V; CAT IV 300V
Authorizations	CSA; CE
