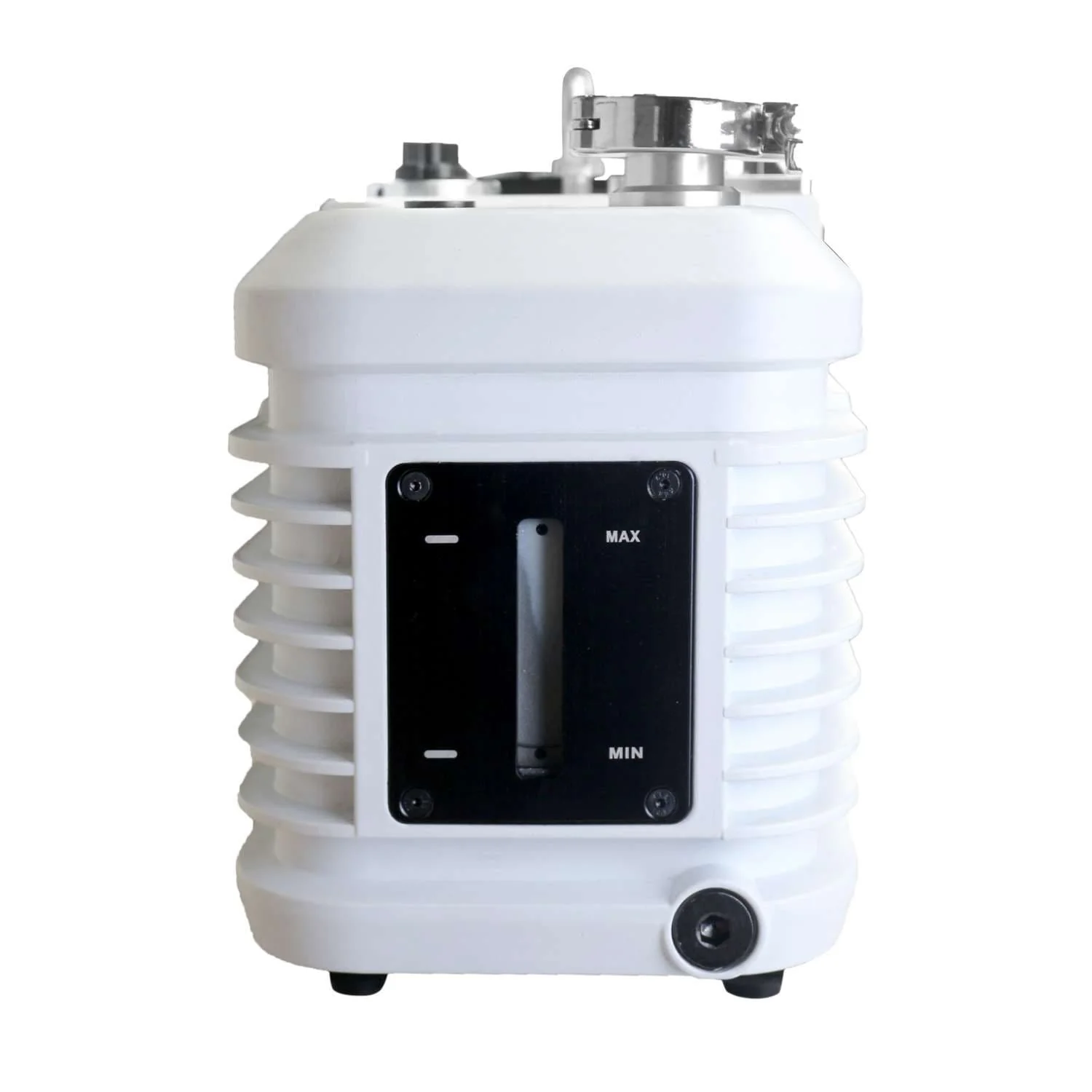

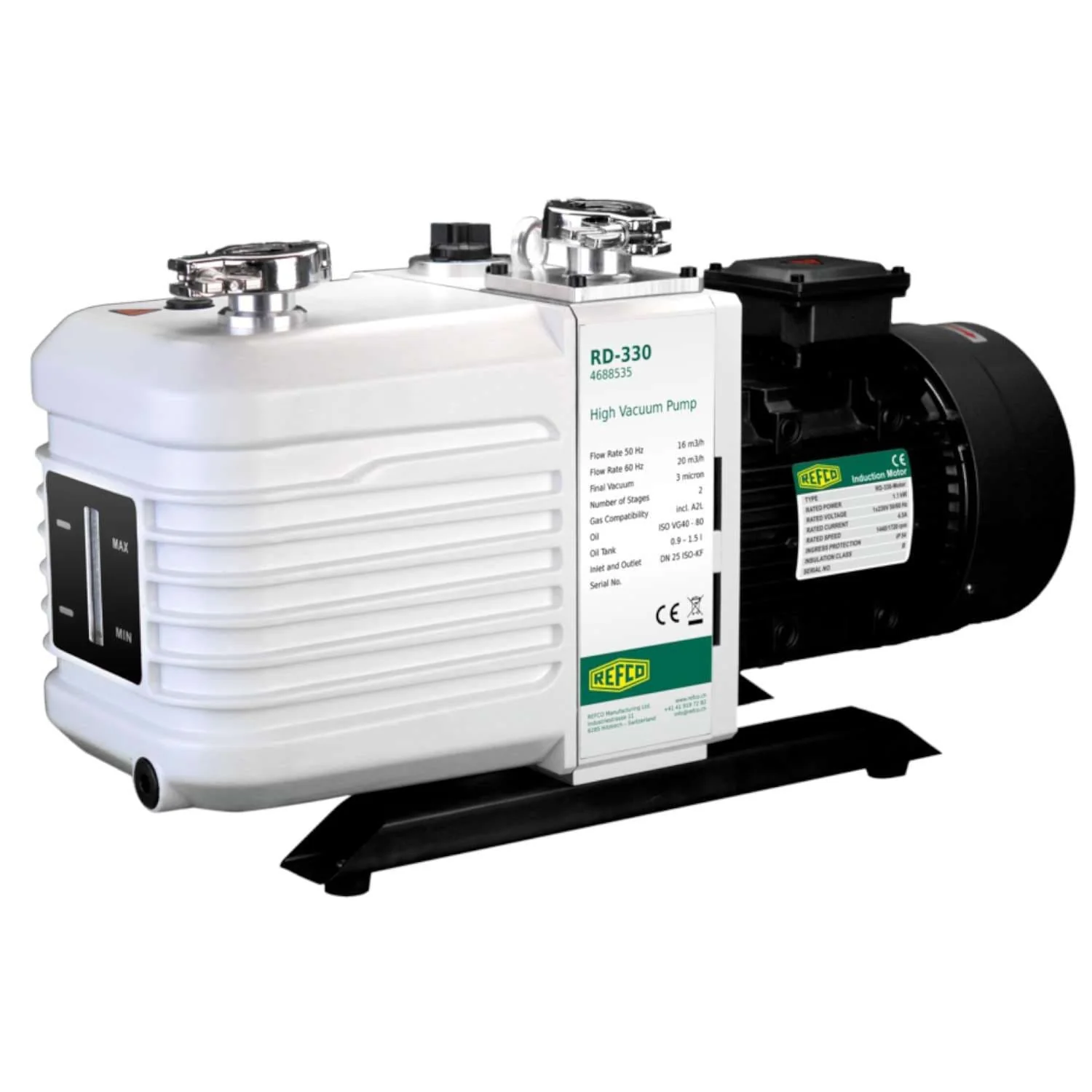

Refco RD-330 High Performance Vacuum Pump
Refco RD-330 High Performance Vacuum Pump
Refco Part Number: 4688535
High performance vacuum pump for large commercial refrigeration and air-conditioning objects.
- The flow rate of the vacuum pump is 16 m3/h
- Ultimate vacuum: 3 micron
- Fan cooled high performance motor
- 2 Stage
- Suitable for A2L (R32, R1234yf, etc.)
- Suitable for ammonia
- Various connections through flexible connection flanges
Specification:
| Material | Stainless steel | Aluminium | Copper | Brass |
| Standards | EN 1012-2 EN 60204-1 EN 61000-6-3 EN 61000-6-2 RoHS REACH CE |
| RoHS Conformity | Yes |
| Gas Connection | 1/4" SAE | 3/8" SAE | KF25 |
| Operating Temperature Range | 5 - 40 °C |
| Storage Temperature Range | 0 - 55 °C |
| Humidity Range | 0 - 85 % |
| Flow Rate | 266.7 l/min |
| End Vacuum | 3 micron |
| Voltage | 220 - 240 VAC |
| Frequency | 50 / 60 Hz |
For more information please click here to view the product on the Refco website
This product has a 4 week lead time from order.
