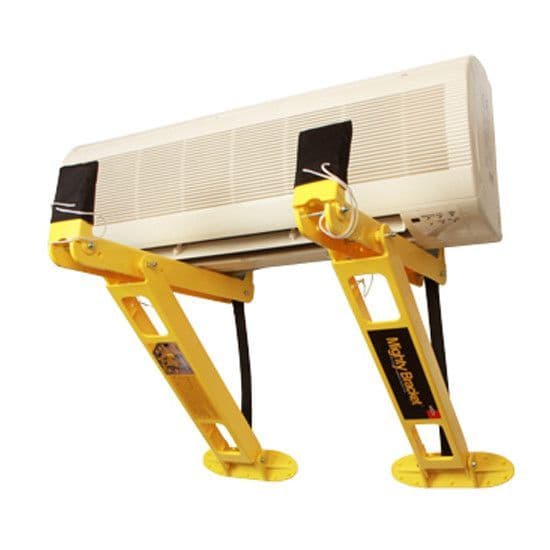

Mighty Bracket

Mini-split installation is now a single person thing

• Allows single person installation
• Simple clip-on support
• Does not damage walls
• Use on all brands of mini-splits

Please note that the Mighty Bracket
is not be used for units that weigh
above 45.4 kilograms (100 pounds)

Instructions for use:
The Mighty bracket clips to the mounting plate of most mini-split brands in order to hold unit securely in place during installation

Hook the Mighty Bracket onto a mini-split mountain plate, to hold unit in place during installation of refrigerant, condensate lines and electrical hook up.

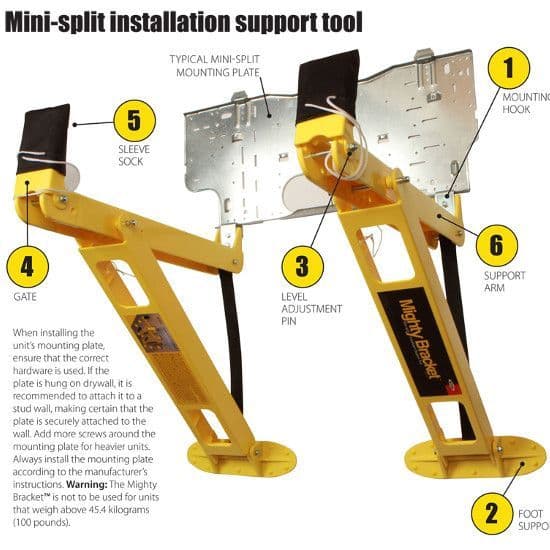

Attach the mounting hooks (1) of the Mighty Bracket to the mini-split mounting plate. If no anchor points are present, the Mighty Bracket can be attached by screws directly to the wall.

Place the foot supports (2) flat against the wall. If you wish to avoid potential wall scuffing, place a clean towel or piece of cardboard between the support foot and the wall surface.

Position level adjustment pins (3) to make the support arms horizontal.

Left the gates (4) at the end of the support arms to make sure the unit cannot slide off.

Place the protective sleeve socks (5) over the gates to avoid scratching the unit.

Set unit securely on top of the support arms (6).

Connect the refrigerant lines, condensate drain piping and electrical wiring. Attach the indoor unit to the mounting plate and remove the Mighty Bracket. The installation is complete.
