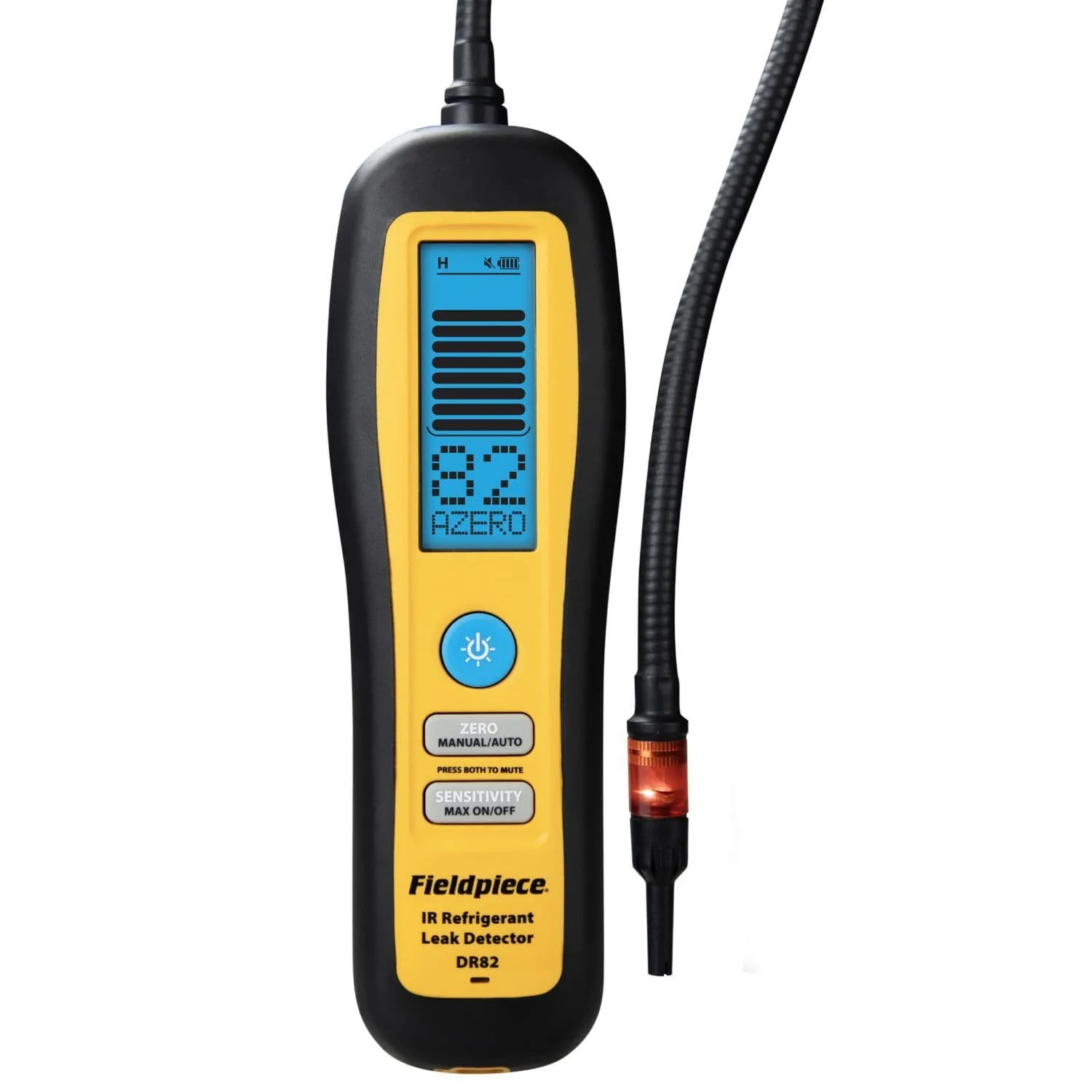

Fieldpiece Infrared Refrigerant Leak Detector DR82
DR82 Fieldpiece Infrared Refrigerant Leak Detector
Easy to see its more reliable.
State-of-the-art infrared sensor
Massive backlit LCD screen provides clear, easy-to- see information
Sensitivity better than 0.03 oz/yr (1g/a)
Detects all HFC, CFC, HCFC, HFO and blends
Flashing lighted tip, loud beeper and leak rate indicator
Doesnt trigger on soap bubbles and oil
The highest possible sensitivity.
If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. Thats 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.
Specifications
Sensor Type: Infrared (IR)
Sensor Life: 10 years typical
Sensitivity Levels: High, medium, low, turbo (selectable)
Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants: HFC, HCFC, CFC, HFOs, and blends
Response Time: <1 seconds typical
Recovery Time: <5 seconds typical
Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
Charge Time: 6 hours typical with included charger.
Battery Life: 10 hours typical, backlight off
Auto Power Off: 10 minutes without detection or button press
Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
Weight: 14 oz (400g)
Water Resistance: Designed to IP54
More Images
Fieldpiece Infrared Refrigerant Leak Detector DR82
DR82 Fieldpiece Infrared Refrigerant Leak Detector
Easy to see its more reliable.
State-of-the-art infrared sensor
Massive backlit LCD screen provides clear, easy-to- see information
Sensitivity better than 0.03 oz/yr (1g/a)
Detects all HFC, CFC, HCFC, HFO and blends
Flashing lighted tip, loud beeper and leak rate indicator
Doesnt trigger on soap bubbles and oil
The highest possible sensitivity.
If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. Thats 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.
Specifications
Sensor Type: Infrared (IR)
Sensor Life: 10 years typical
Sensitivity Levels: High, medium, low, turbo (selectable)
Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants: HFC, HCFC, CFC, HFOs, and blends
Response Time: <1 seconds typical
Recovery Time: <5 seconds typical
Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
Charge Time: 6 hours typical with included charger.
Battery Life: 10 hours typical, backlight off
Auto Power Off: 10 minutes without detection or button press
Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
Weight: 14 oz (400g)
Water Resistance: Designed to IP54
