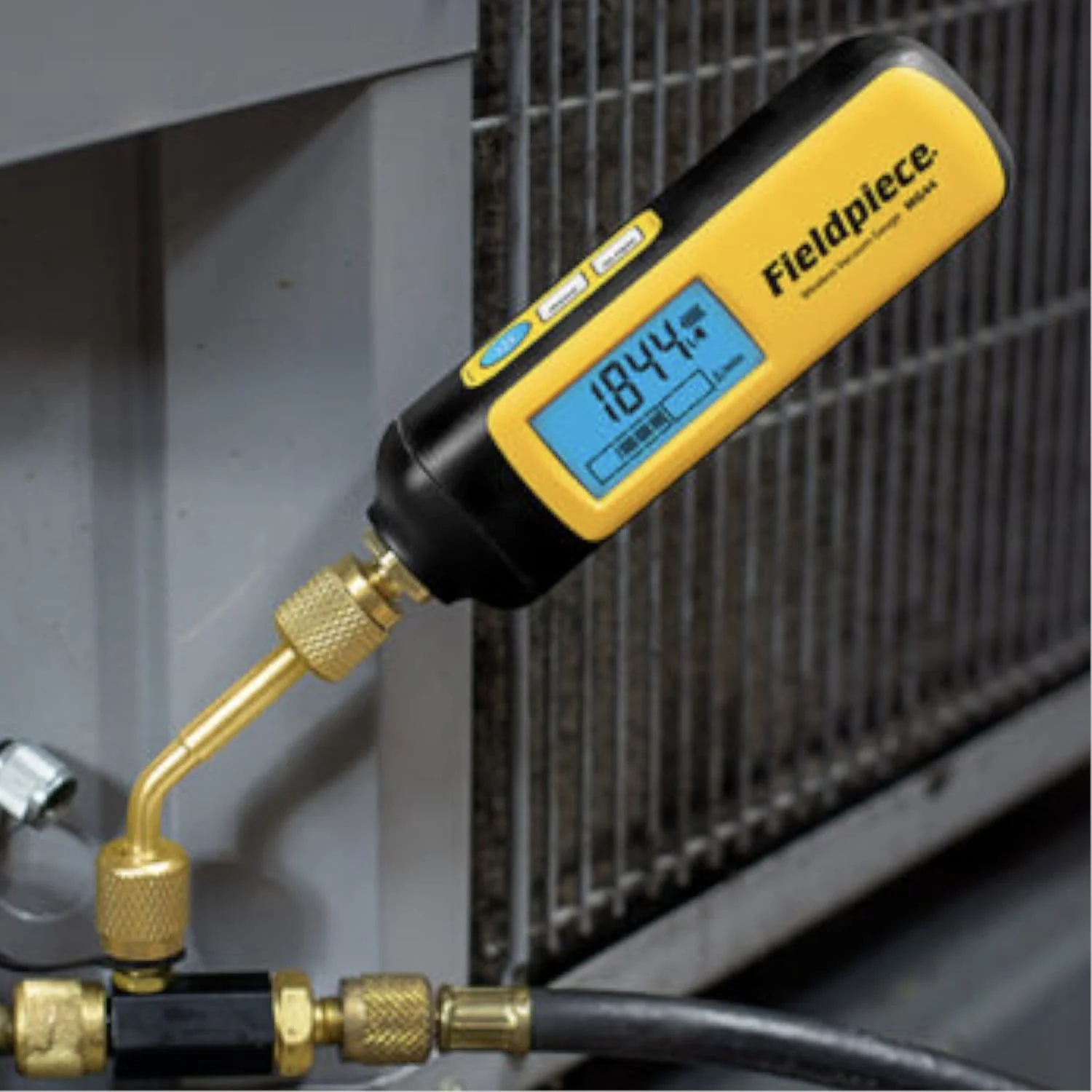

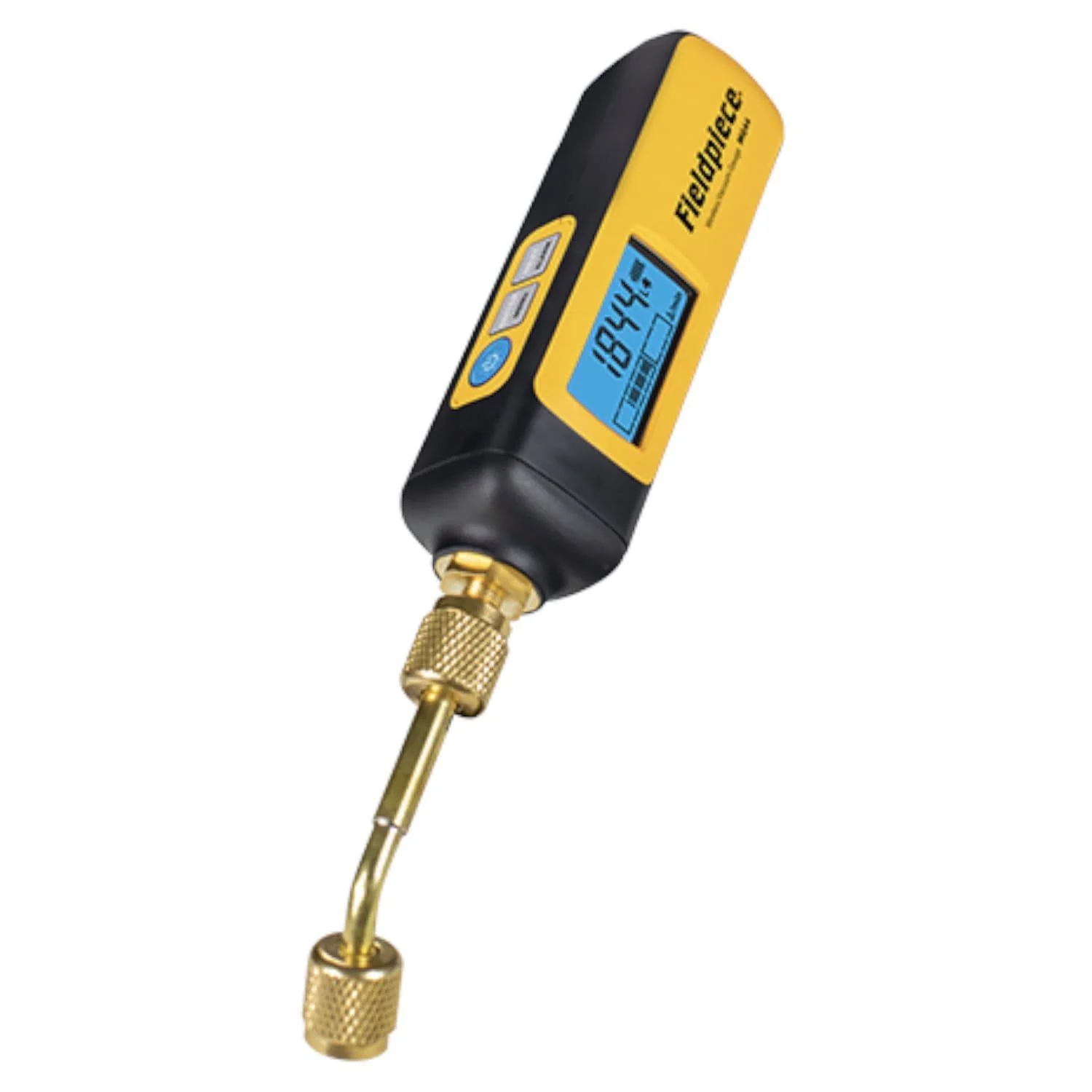

Fieldpiece Digital Vacuum Torr Gauge MG44
MG44 Wireless Vacuum Gauge
Rugged, accurate and wireless
Confidently perform evacuations with a reliable, leak-proof seal.
Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
There are three ways to use: View from 1) up to 1000 away via the Job Link® mobile app, 2) on the Fieldpiece SMAN® Refrigerant Manifold, or 3) direct from the MG44s display.
Three ways to view: New larger backlit LCD screen is easier to read and its dot-matrix display shows more info including 1) bar graph, 2) rate, and 3) rate meter.
IP54-rated weather-resistant.
Rugged over-molded construction for extreme impact resistance.
Designed for the field.
Like every piece of Fieldpiece hardware, the Wireless Vacuum Gauge (MG44) is built to make your work easier. It helps eliminate misleading measurements by allowing you to connect it at the system port even those awkward, hard-to-reach spots. Its also housed in a rugged impact- and weather-resistant case.
Specification
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android 5.0 (Latest compatibility at www.fieldpiece.com)
Connector type: 1/4 SAE male fitting
Accuracy: ±(5% of reading + 5 microns) at 77°F (25°C), 50 to 1000 microns
Range and Units: 50 to 25000 microns of mercury (English), 6 to 3333 Pascals (Metric), 0.06 to 33.33 mBar (Metric), 50 to 25000 mTorr (Metric), 0.05 to 25 Torr (Metric, equivalent to mmHg)
Best Resolution: 1 micron of mercury (below 2000 microns), 1 Pascal (below 250 Pascals), 0.001 mBar (below 2.5 mBar), 1 mTorr (below 2000 mTorr), 0.001 Torr (below 2.5 Torr, equivalent to mmHg)
Battery Type: 2 x AA Alkaline (included)
Battery Life: 40 hours typical alkaline
Auto Power Off: 15 minutes default (APO adjustable)
Wireless Range: 1000 feet (305 meters) line of sight. Obstructions affect distance.
Radio Frequency: 2.4 GHz
Water Resistance: IP54
