Blue Diamond MegaBlue Pump with Temp Sensors
Blue Diamond MegaBlue Condensate Pump with Temperature Sensors - X87-814
Includes Fail Safe Alarm
Ideal for air conditioning and refrigeration
The MEGABLUE® is the Juggernaut of the condensate removal range. Using the same patented rotary diaphragm technology to the rest of the range, the MEGABLUE® still offers ultra-quiet, ultra-reliable characteristics, whilst being able to pump up to six storeys high. The pump is totally self-priming, and offers advertised flow even in high lift and high head applications, a unique feature in the condensate removal pump market. Capable of running dry and pumping debris the MEGABLUE® is ideal for installations where increased pipe runs are required.
Performance
| Max flow | Max head | Max suction lift |
| 50 litres / hour | 20 metres | 7 metres |
The MegaBlue can be mounted in any orientation up to 7m from the AC Unit.

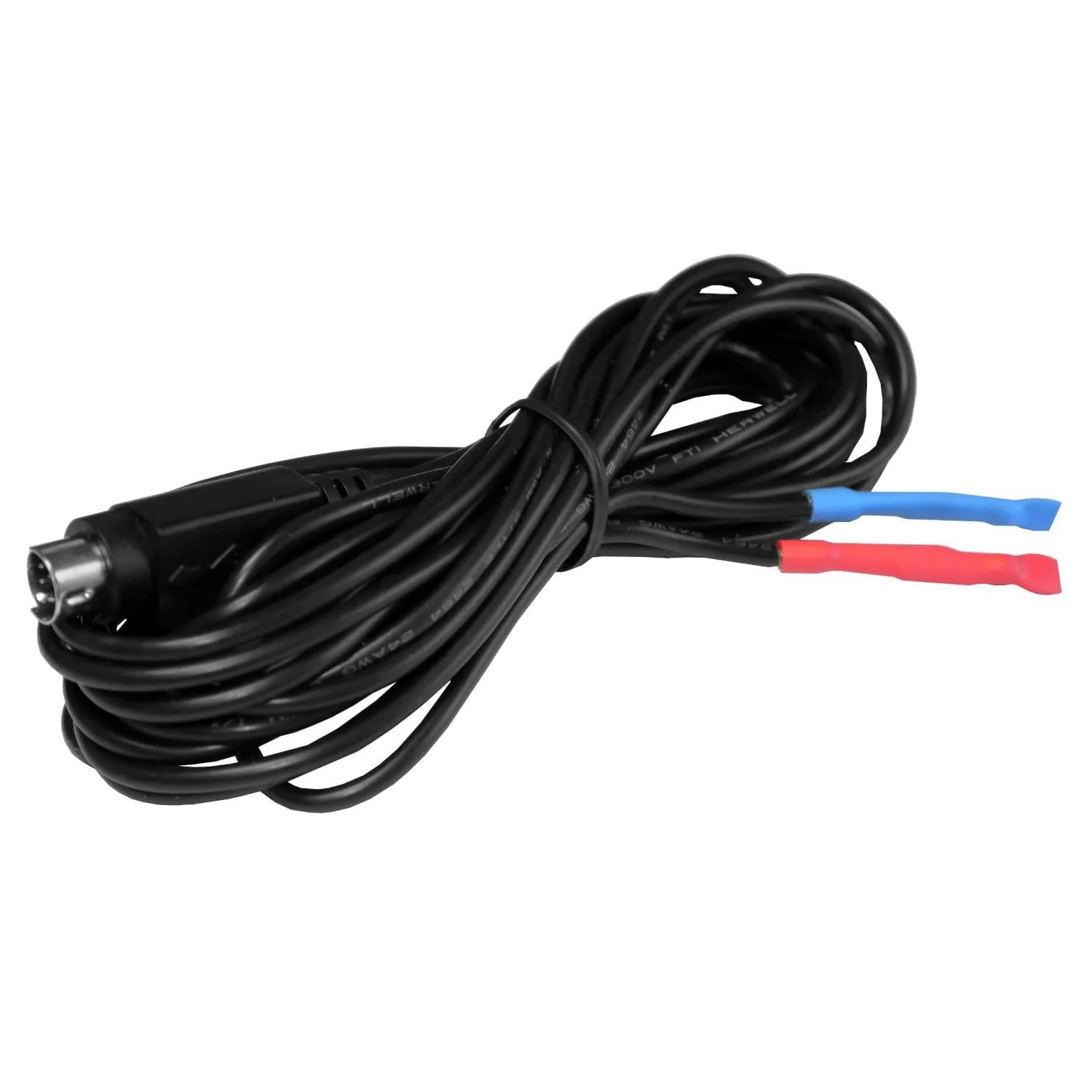

TEMPERATURE SENSOR / S12-002
The hot and cold temperature sensor mounts in the air inlet and outlet of the room unit, sensing when cooling occurs. The temperature sensor runs the pump constantly when air conditioning is on, regardless of whether condensate is being produced.
FSA-
Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.
More Images
Blue Diamond MegaBlue Pump with Temp Sensors
Blue Diamond MegaBlue Condensate Pump with Temperature Sensors - X87-814
Includes Fail Safe Alarm
Ideal for air conditioning and refrigeration
The MEGABLUE® is the Juggernaut of the condensate removal range. Using the same patented rotary diaphragm technology to the rest of the range, the MEGABLUE® still offers ultra-quiet, ultra-reliable characteristics, whilst being able to pump up to six storeys high. The pump is totally self-priming, and offers advertised flow even in high lift and high head applications, a unique feature in the condensate removal pump market. Capable of running dry and pumping debris the MEGABLUE® is ideal for installations where increased pipe runs are required.
Performance
| Max flow | Max head | Max suction lift |
| 50 litres / hour | 20 metres | 7 metres |
The MegaBlue can be mounted in any orientation up to 7m from the AC Unit.
TEMPERATURE SENSOR / S12-002
The hot and cold temperature sensor mounts in the air inlet and outlet of the room unit, sensing when cooling occurs. The temperature sensor runs the pump constantly when air conditioning is on, regardless of whether condensate is being produced.
FSA-
Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.
