Big Foot H Frame Support Set 330mm B6088

Big Foot B6088 H Frame Set 330 mm

H Frame Sets are an economical support solution for pipe or duct. They accept a range of strut, and by fabricating the frame on-site, they are the flexible choice.

Versatile and easy to use the Big Foot H Tech Set is suitable for supporting pipework, duct or cable trays for loads up to 300kg (661 lbs).

Key Features:

• Rubber mats at the bottom to provide additional protection for the roof
• Comes in compact box
• Foot size: 330mm (13")
• Feet will accept: 21 × 41mm, 40 × 38mm, 41 × 41mm strut and 40 × 40mm box section steel
• Feet also have a pre threaded hole suitable for M12 bar

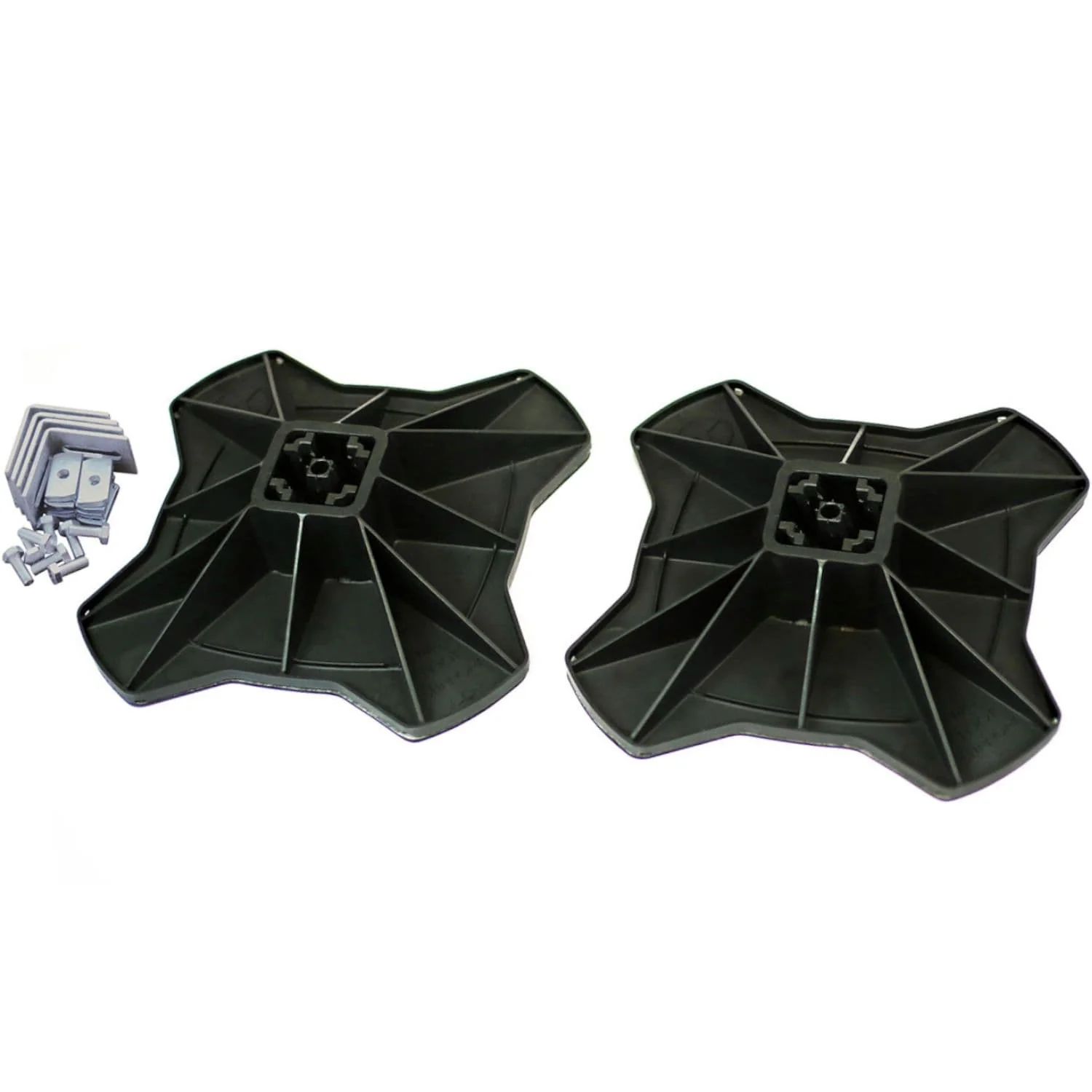

Included in box:

• 2 Feet with adhered mats
• 4 Bracket and fixings
• Assembly instructions

Strut sold separately

Click here to view the product spec sheet
