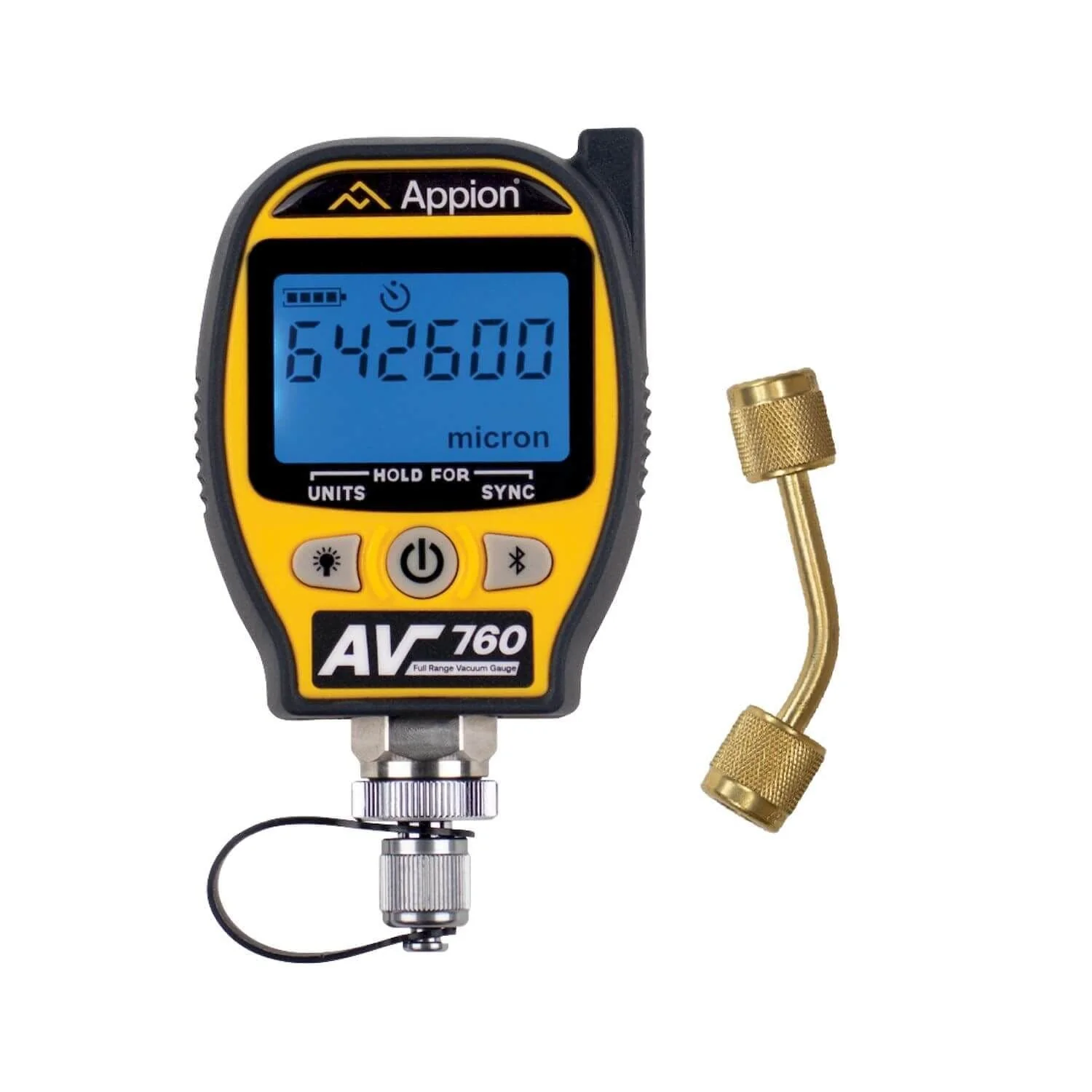

Appion AV760 Full Range Vacuum Gauge Torr AC
Appion AV760 Full Range Vacuum Gauge
Ideal for Air Conditioning and Refrigeration
Accurate Measurement from Atmosphere to 1 micron
Accurately measure the entire evacuation process from atmosphere to 1 micron and immediately detect large leaks with the Appion AV760 Wireless Full-Range Vacuum Gauge. The AV760 delivers 10-point Vacuum-Verified accuracy, elite technology, and advanced app functionality for remote, real-time readings, enabling advanced analysis and diagnosis. Reliable. Repeatable. Durable.
Features and Benefits
- High-Resolution Full-Range Response* - Atmospheric to 15k microns are displayed in 50-micron increments, and 15k to 1 micron are displayed within an ultra-fine 1 micron resolution.
- Oil protection - A filter screen and oil catch keep the sensors clean and help maintain accurate measurements.
- Durable - A rubberized water-resistant IP65 rated housing protects the gauge from the hazards of the jobsite.
- Advanced System Analysis - With the Appion Central App, the gauge is capable of live data-logging, reporting, decay testing, and more.
How to Use High-Resolution Response
To check if your device has High-Resolution mode, turn your device on. If the screen displays a resolution setting (L. res or H. res), your device was manufactured with High-Resolution Mode. To switch between modes, press the power and Bluetooth® buttons at the same time with the gauge powered on. The screen will then display the current resolution setting.
Gauge Features with the Appion Central App
The Appion Central App enables remote, real-time viewing for all Appion Digital Gauges.
Multiple, simultaneous remote readings are now possible. Easy-to-use and perfect for advanced system analysis on evolving, complex, high-efficiency systems.
When the AV760 is paired with the Appion Central App, receive remote notifications from custom alarms when readings move beyond predetermined thresholds.
Active gauge readings enable real-time system evacuation leak test analysis, multiple alarms, and more. More functionality, less bulk.
| Range: | 760,000 to 1 microns |
| Accuracy: | ±5% of reading + 10 microns (1 to5k), ±5% of reading (5k to ATM) |
| Calibration Points: | 10-point Vacuum-Verified |
| Resolution: | 1 micron (1-14999), 50 micron (15000-ATM) |
| Maximum Overpressure: | 400 psi |
| Fitting: | 1/4in Male SAE Flare |
| Units: | Microns, mTorr, kPa, mBar, in/Hg, psia |
| Included Adapter: | (1) 4in 45 1/4in Female FL to 1/4in Female FL Connector |
| IP Rating: | IP65 |
Original: $606.25
-65%$606.25
$212.19More Images
